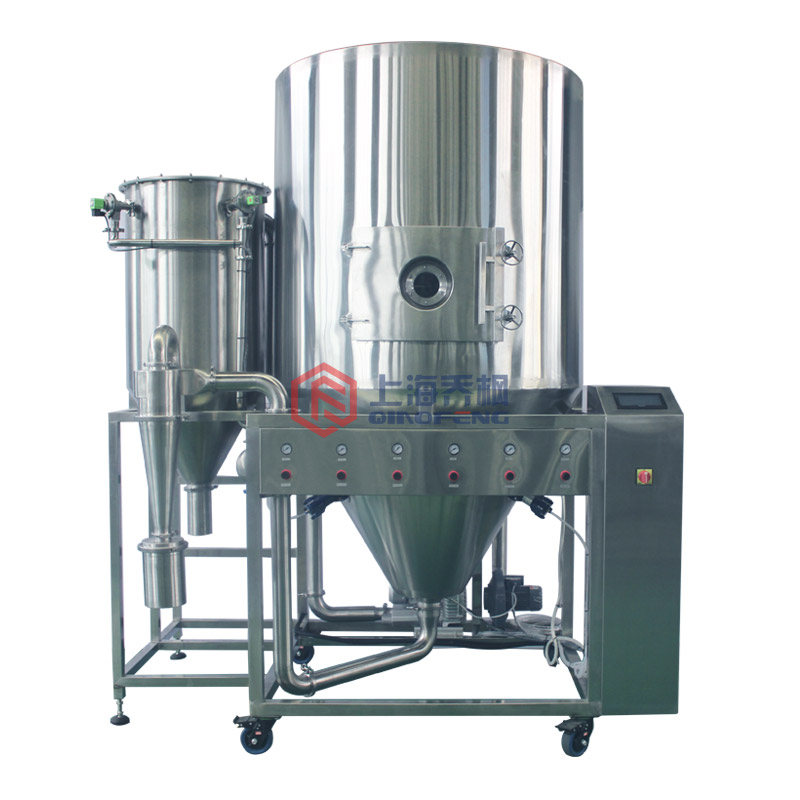

| Device Name: | Dual purpose spray dryer for centrifugal air flow |
| Equipment type: | QFN- LE type |
| Equipment specifications: | 10Kg/h (customized support) |
| Test machine: | Support the test machine to do the experiment |
| Scope of application: | Powdered and granular solid products are produced in solution, emulsion, suspension and paste liquid raw materials. |
| Applicable scenarios: | Scientific research, chemical industry, food, pesticide, medicine and biological industry in Universities |
| Is it guaranteed? | Three-year National Warranty |
| Consultation telephone: | 17317246351 |
This spray dryer consists of eight systems: feeding system, atomizing system, drying tower, material recovery system, tail gas treatment system, heating system, piping system and control system.
Equipment parameters:
|
?Inner diameter of tower |
Φ1100mm |
|
External diameter of Kata |
Φ1300mm |
|
O intake air volume |
600 m/h, frequency converter regulation |
|
O air intake volume |
600 m3 / h |
|
Bah intake temperature |
One60 - 250 degrees |
|
Click air temperature |
95°C。 |
|
Evaporation of water |
10 kg /h |
|
O solid content |
10-15% |
|
O heat source |
Electric heating |
|
Gathering method |
Cloth bag dust removal, tower bottom, cyclone three points of collection. |
|
Bag Material |
Dongli, Japan |
|
Bah atomization mode |
Centrifugal and airflow dual-purpose |
|
Does Bag Dust Removal System Contain |
contain |
|
Belt purge device |
Anti sticking wall |
|
Chuck beater |

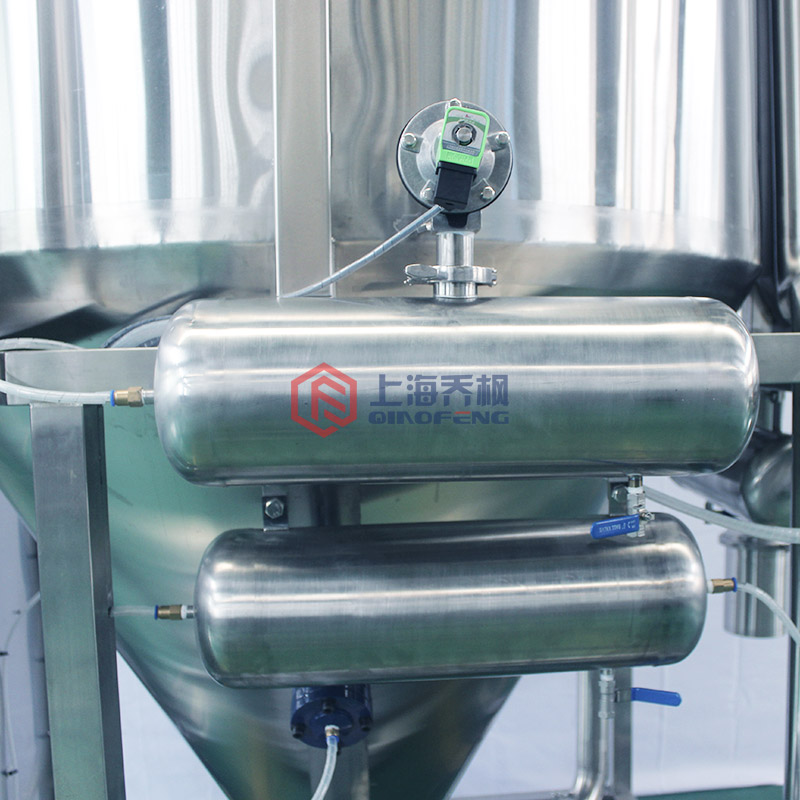

Pulse type |
